Varya Perimeter

Automatic control of analog PTZ cameras disposition

In case of perimeter intrusion, the Varya Perimeter system automatically guides PTZ cameras by a direct control to the place of the incident. It uses so-called presets, while each preset of the respective camera is logicaly binded to particular detector (or to a set of FLA detectors). Varya Perimeter can control several PTZ cameras simultaneously. In case that an intruder climbs over the fence at only one location, all PTZ cameras are guided to the place of incident. In case that e.g. two intruders are climbing over the fence at two places, then a single PTZ camera is guided to one location, and another camera is guided to the second location of the incident, to avoid loss of information.

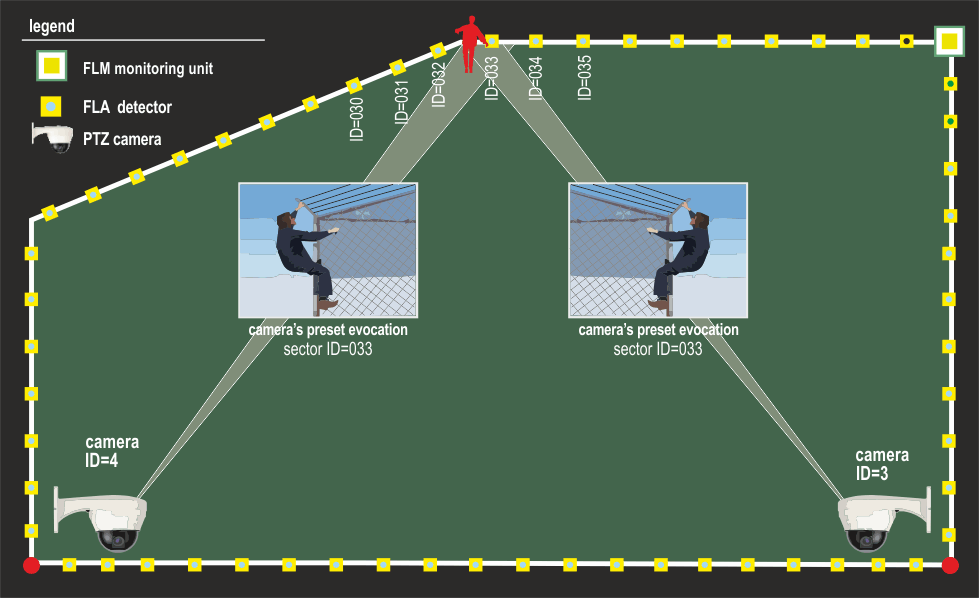

fig. 10 - Disposition of Varya Perimeter system - PTZ cameras

Architecture of the automatic control of PTZ cameras

The Varya Perimeter system can control all analog PTZ cameras with the Pelco-D protocol, or supported IP cameras, directly from the FLU unit. Other types of IP cameras can be implemented into the Varya Perimeter system as well, after consultation with the manufacturer.

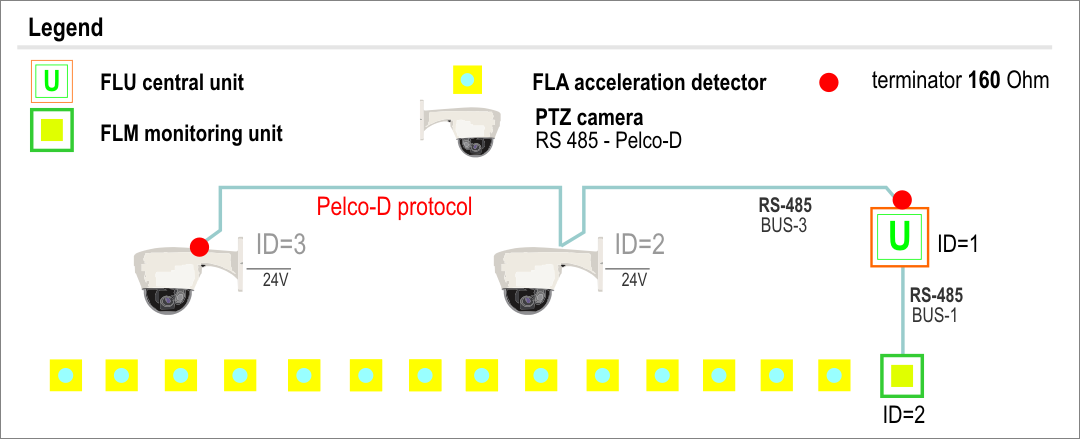

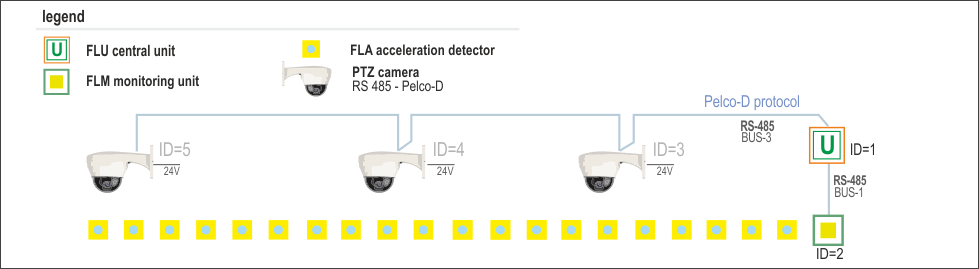

fig. 11 - Architecture of the system with the analog PTZ cameras

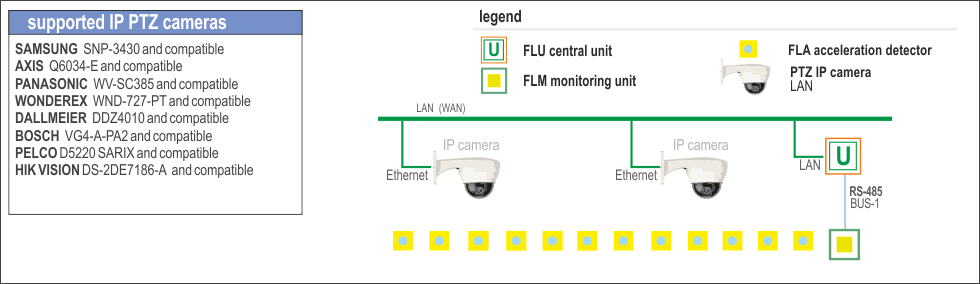

fig. 12 - Architecture of the IP - PTZ cameras system

Supported IP PTZ cameras (2018)
